4 1.4 Printing

Learning Objectives

  • Use the Page Layout tab to prepare a worksheet for printing.
  • Add headers and footers to a printed worksheet.
  • Examine how to print worksheets and workbooks.

Once you have completed a workbook, it is good practice to select the appropriate settings for printing. These settings are in the Page Layout tab of the Ribbon and discussed in this section of the chapter.

Page Setup

Before you can properly print the worksheets in a workbook, you must establish appropriate settings. The following steps explain several of the commands in the Page Layout tab of the Ribbon used to prepare a worksheet for printing:

  1. Open the CH1 Merchandise City Sales Data workbook, if it is not already open.
  2. Click the Page Layout tab of the Ribbon.
  3. Click the Margins button in the Page Setup group of commands. This will open a drop-down list of options for setting the margins of your printed document.
  4. Click the Wide option from the Margins drop-down list. (see Figure 1.47)
  5. Click the Orientation button in the Page Setup and select Landscape.
  6. Click on the arrow to the bottom right of the Page Setup category to launch the Page Setup options dialog box. Excel for Mac icon Mac Users: there is no “arrow at the bottom right of the Page Setup category”. Simply click the Page Setup button Page Setup Button for Excel for Mac on the Page Layout tab.
  7. Click the Margins tab and locate “Center on Page”. Click the boxes to Horizontally and Vertically center the data on the worksheet. Click OK.

Why?

Use Print Settings

Because professionals often share Excel workbooks, it is a good practice to select the appropriate print settings in the Page Layout tab even if you do not intend to print the worksheets in a workbook. It can be extremely frustrating for recipients of a workbook who wish to print your worksheets to find that the necessary print settings have not been selected. This may reflect poorly on your attention to detail, especially if the recipient of the workbook is your boss.



Page Layout Commands dialog box. Tabs for Page, Margins, Header/Footer, and Sheet with Margins tab open and Print, Print Preview, Options, and OK/Cancel at bottom of dialog box.
Figure 1.47 Page Layout Commands for Printing



Table 1.2 Printing Resources: Purpose and Use for Page Setup Commands

Command Purpose Use
Margins Sets the top, bottom, right, and left margin space for the printed document 1. Click the Page Layout tab of the Ribbon.
2. Click the Margin button.
3. Click one of the preset margin options or click Custom Margins.
Orientation Sets the orientation of the printed document to either portrait or landscape 1. Click the Page Layout tab of the Ribbon.
2. Click the Orientation button.
3. Click one of the preset orientation options.
Size Sets the paper size for the printed document 1. Click the Page Layout tab of the Ribbon.
2. Click the Size button.
3. Click one of the preset paper size options or click More Paper Sizes.
Print Area Used for printing only a specific area or range of cells on a worksheet 1. Highlight the range of cells on a worksheet that you wish to print.
2. Click the Page Layout tab of the Ribbon.
3. Click the Print Area button.
4. Click the Set Print Area option from the drop-down list.
Breaks Allows you to manually set the page breaks on a worksheet 1. Activate a cell on the worksheet where the page break should be placed. Breaks are created above and to the left of the activated cell.
2. Click the Page Layout tab of the Ribbon.
3. Click the Breaks button.
4. Click the Insert Page Break option from the drop-down list.
Background Adds a picture behind the cell locations in a worksheet 1. Click the Page Layout tab of the Ribbon.
2. Click the Background button.
3. Select a picture stored on your computer or network.
Print Titles Used when printing large data sets that are several pages long. This command will repeat the column headings at the top of each printed page. 1. Click the Page Layout tab of the Ribbon.
2. Click the Print Titles button.
3. Click in the Rows to Repeat at Top input box in the Page Setup dialog box.
4. Click any cell in the row that contains the column headings for your worksheet.
5. Click the OK button at the bottom of the Page Setup dialog box.

Headers and Footers

When printing worksheets from Excel, it is common to add headers and footers to the printed document. Information in the header or footer could include the date, page number, file name, company name, and so on. The following steps explain how to add headers and footers to the Merchandise City, USA Retail Sales worksheet.

  1. Click the Insert Ribbon and click on Header & Footer at the right end of the ribbon (located in the Text group). You will see the Design tab added to the Ribbon; this is used for creating the headers and footers for the printed worksheet. Also, this will convert the view of the worksheet from Normal to Page Layout (see Figure 1.48). This Page Layout view makes adding Headers & Footers easy and provides key features to incorporate.
  2. Click on the Current Date icon to add the date to the left section of the worksheet Header.  The &[Date] symbols which will toggle to a Date format when you click outside of this area.

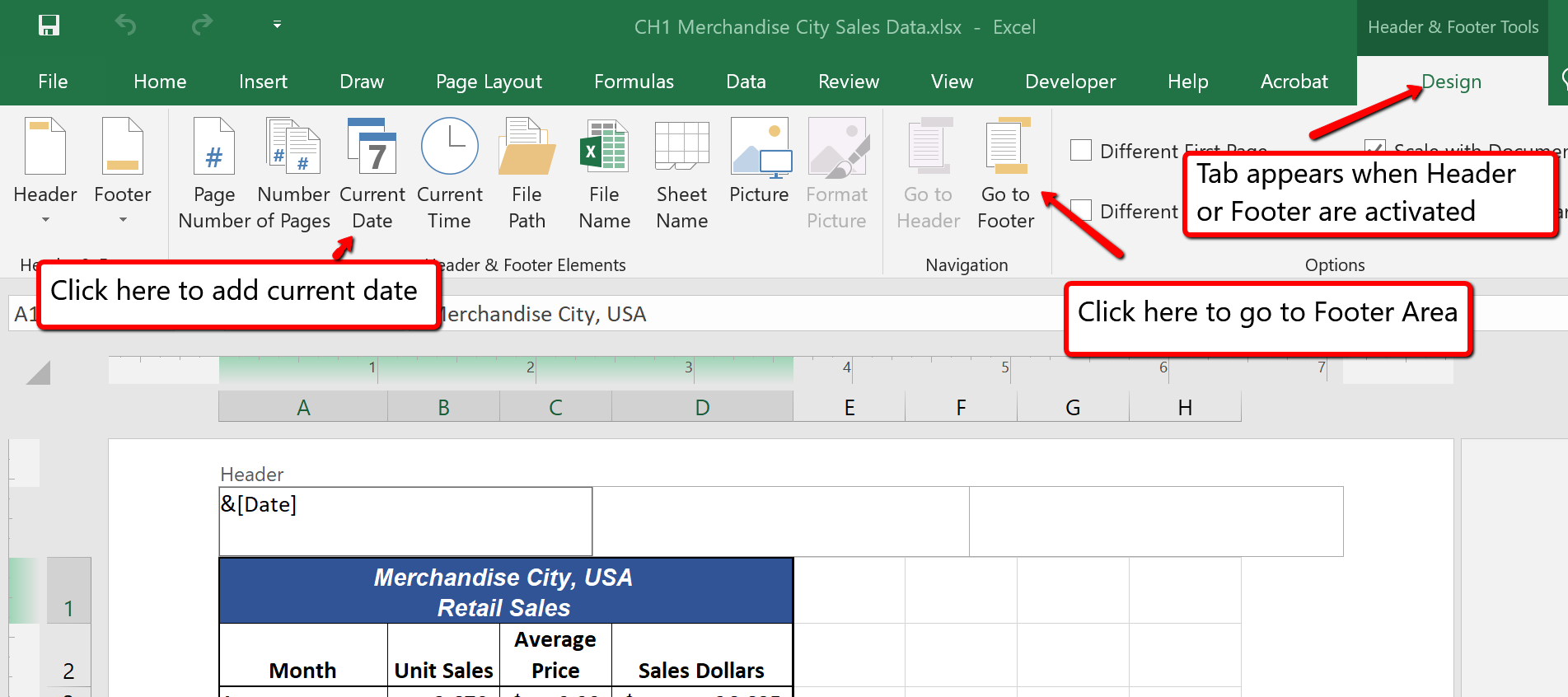

    Design Tab menu for creating headers and footers. Options include page number, date, time, file name.
    1.48 Design Tab for Creating Headers and Footers

    Figure 1.48 Design Tab for Creating Headers and Footers

  3. Type your name in the center section of the Header.
  4. Place the mouse pointer over the left section of the Header and left click (see Figure 1.48).
  5. Click the Go to Footer button in the Navigation group of commands in the Design tab of the Ribbon.
  6. Place the mouse pointer over the far right section of the footer and left click.
  7. Click the Page Number button (you may need to click on the Design tab again) in the Header & Footer Elements group of commands in the Design tab of the Ribbon. This view will display as &[Page] until printed or until you return to normal view.
  8. Click any cell location outside the header or footer area. The Design tab for creating headers and footers will disappear.
  9. Click the Normal view button in the lower right side of the Status Bar (see Figure 1.49).
Page Layout View includes page measurements and headers/footers. To return to Normal view, use button on bottom right.
Figure 1.49 Worksheet in Page Layout View

Printing Worksheets and Workbooks

Once you have established the print settings for the worksheets in a workbook and have added headers and footers, you are ready to print your worksheets. The following steps explain how to print the worksheets in the Merchandise City, USA Sales workbook:

  1. Click the File tab on the Ribbon.
  2. Click the Print option on the left side of the Backstage view (see Figure 1.50). On the right side of the Backstage view, you will be able to see a preview of your printed worksheet.

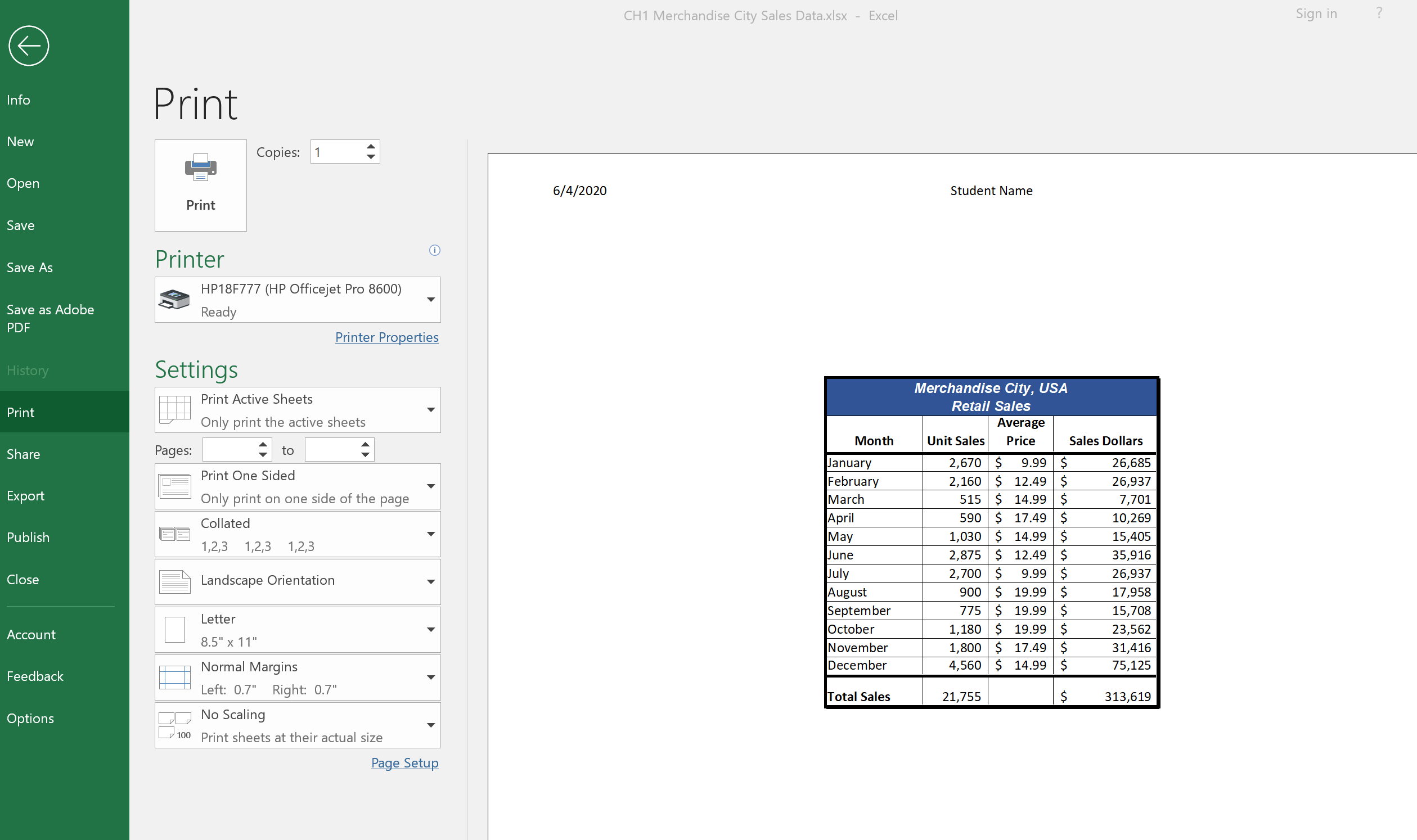

    Print Backstage View with worksheet preview on right and print options on left, including printer choice and settings.
    Figure 1.50 Backstage View Print option
  3. Click the Print Active Sheets button in the Print section of the Backstage view (see Figure 1.50).
  4. If your instructor has asked you to print your work, click the Print button.
  5. Click the Home tab of the Ribbon.
  6. Save and close the workbook.

Key Takeaways

  • The commands in the Page Layout tab of the Ribbon are used to prepare a worksheet for printing.
  • You can add headers and footers to a worksheet to show key information such as page numbers, the date, the file name, your name, and so on.
  • The Print commands are in the File tab of the Ribbon.
