8.1: Create the Project Network Diagram

Notes

Video 8.1: Project Networks

Fill in the diagrams below as you watch the video on Project Networks.

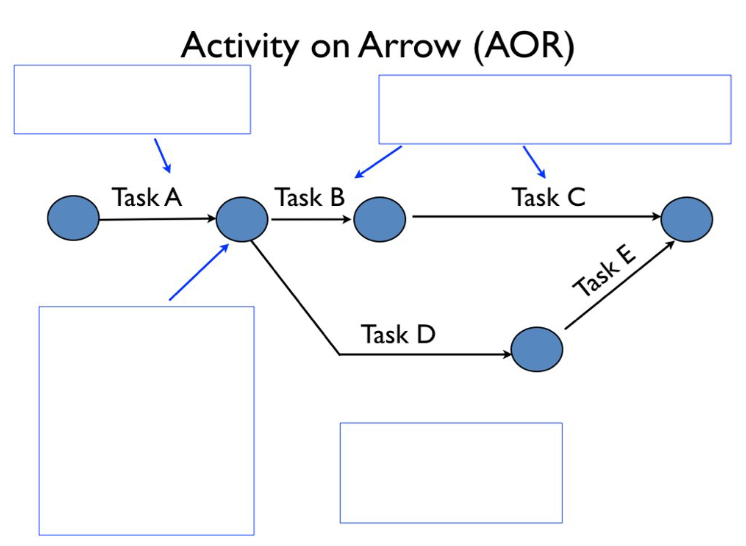

A diagram of Activity on Arrow (A.O.R.)

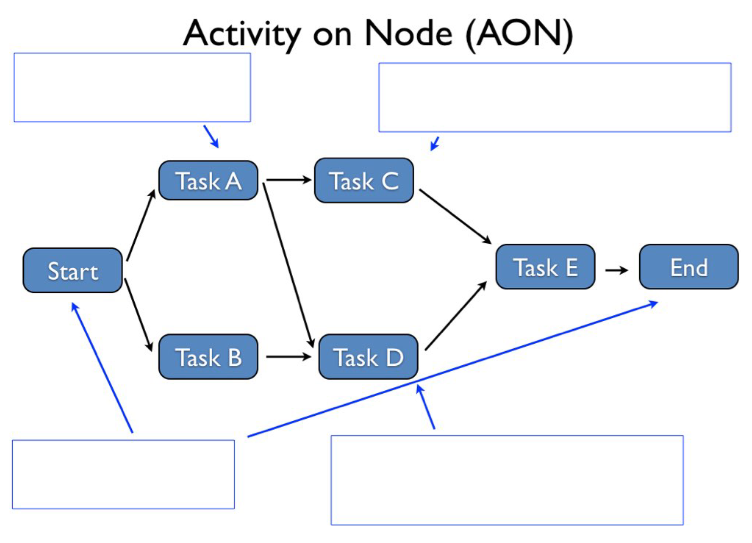

A diagram of Activity on Node (A.O.N.)

Video 8.2: The Forward and Backward Pass

Check Your Knowledge

Questions: Project Networks

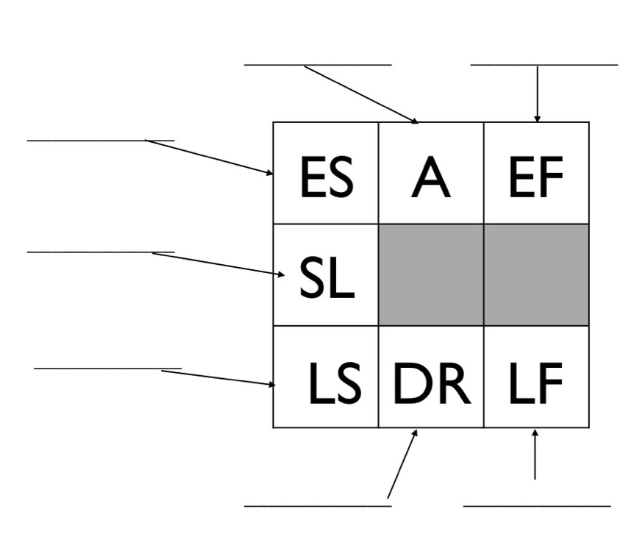

7. Fill in the labels on the diagram below for a network activity.

A blank diagram of a network activity.

Exercise 1

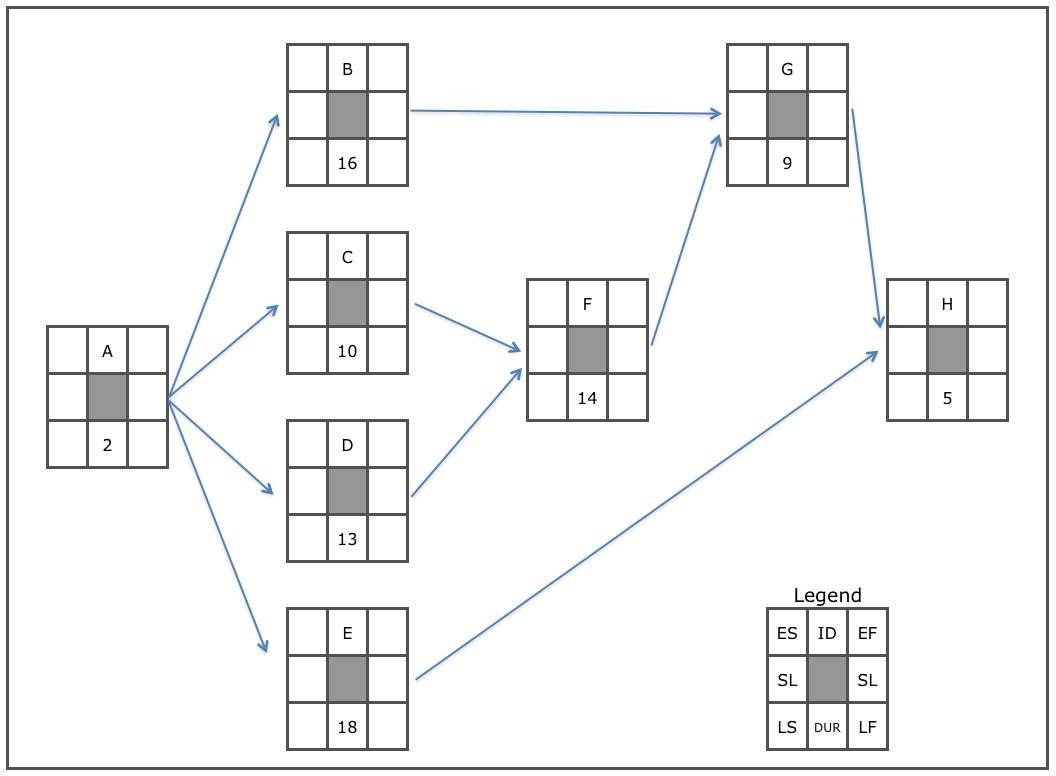

Complete the forward and backward pass for the network below.

A network diagram.

Exercise 2

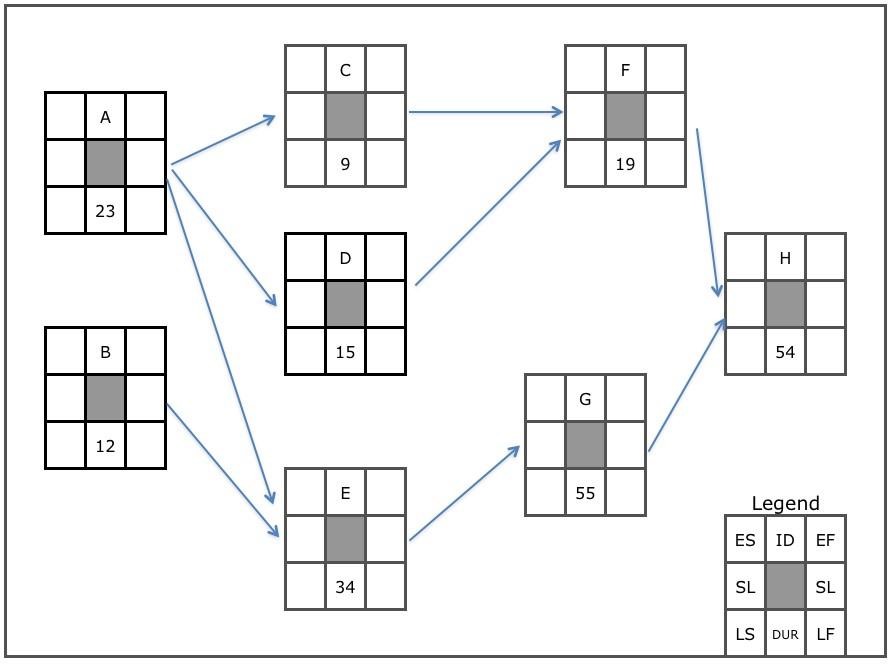

Complete the forward and backward pass for the network below, and answer the following question.

A second network diagram.

Exercise 3

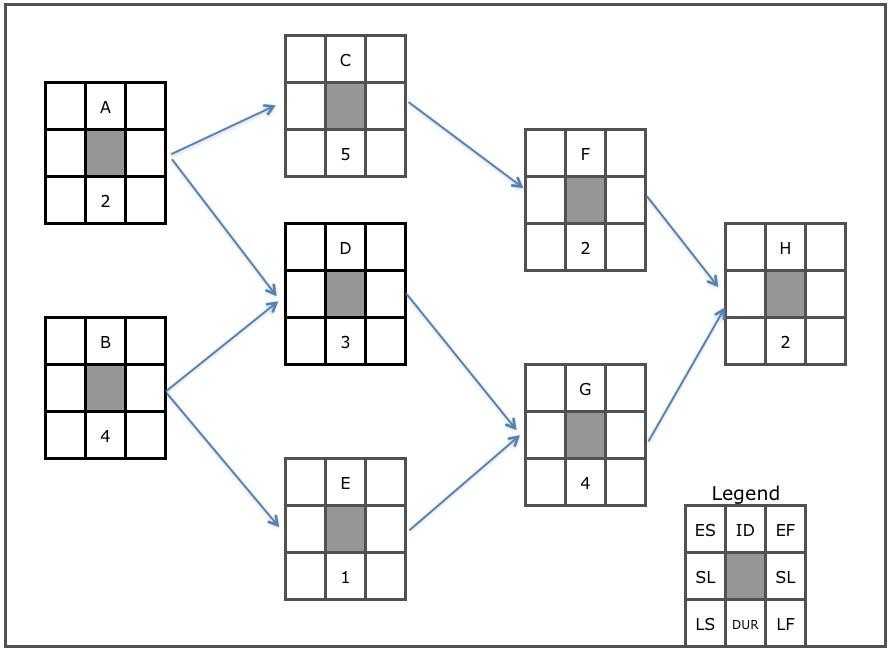

Complete the forward and backward pass for the network below, and answer the following questions.

A third network diagram.
